Backyard Trellis and Custom Bench Reconstruction

Backyard Trellis and Custom Bench Reconstruction

AREA
Backyard patio and garden area
TIMEFRAME
Scoped project, in progress
Earliest start
--
Backyard Trellis and Custom Bench Reconstruction
THE CHALLENGE

The Situation

  • The bench and trellis structure was worn out and no longer safe to use.
  • The partition wall blocked the view through the window, closing the space in.
  • The homeowner wanted the new structure to be sturdy enough for heavy planters or light exercise use, not just decorative.

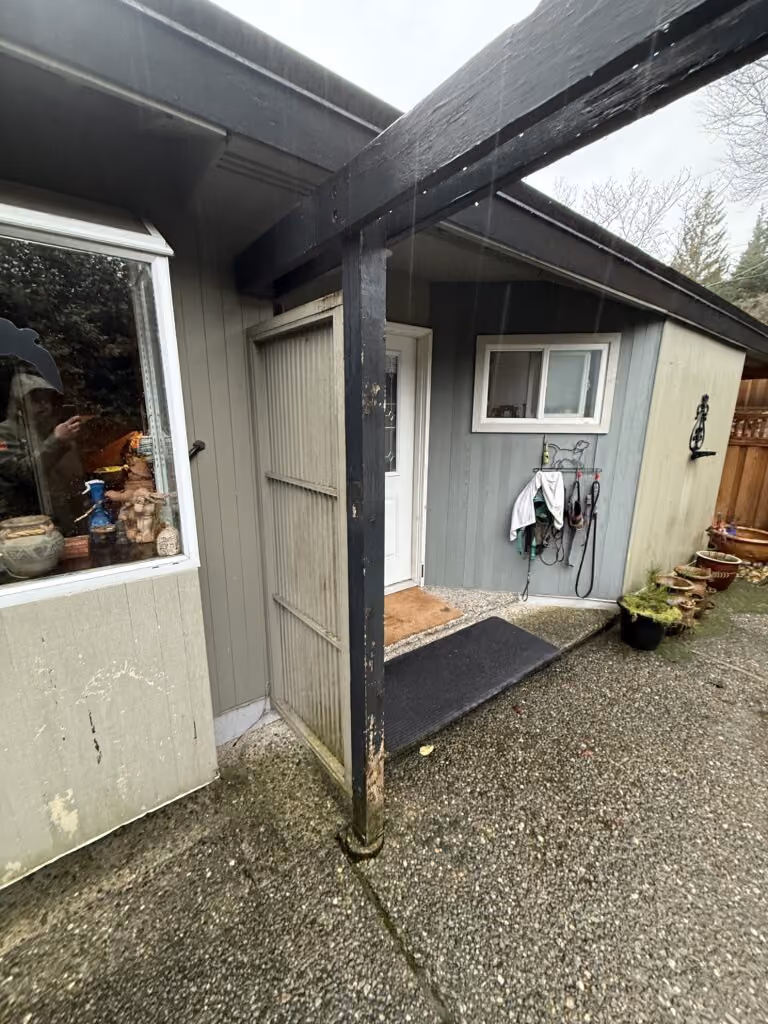

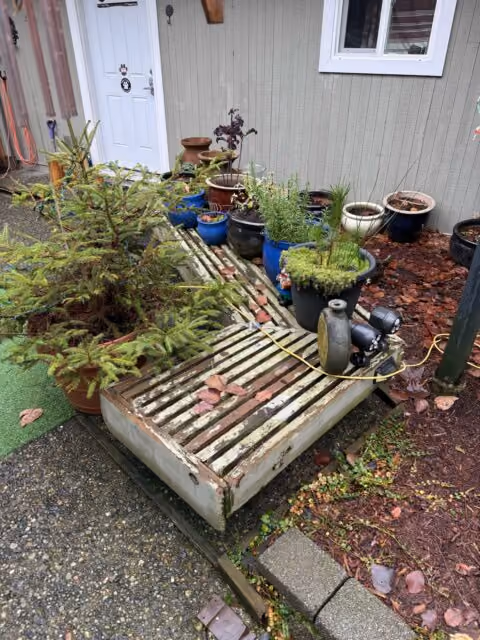

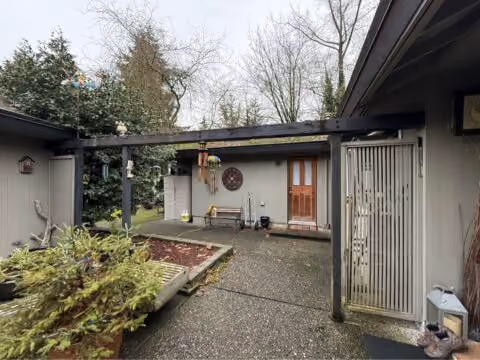

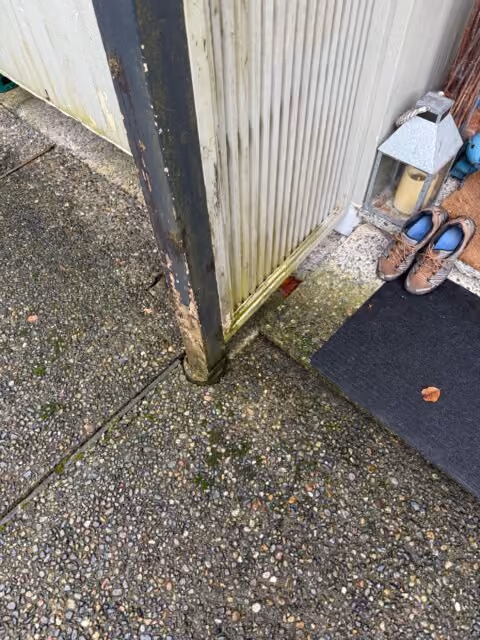

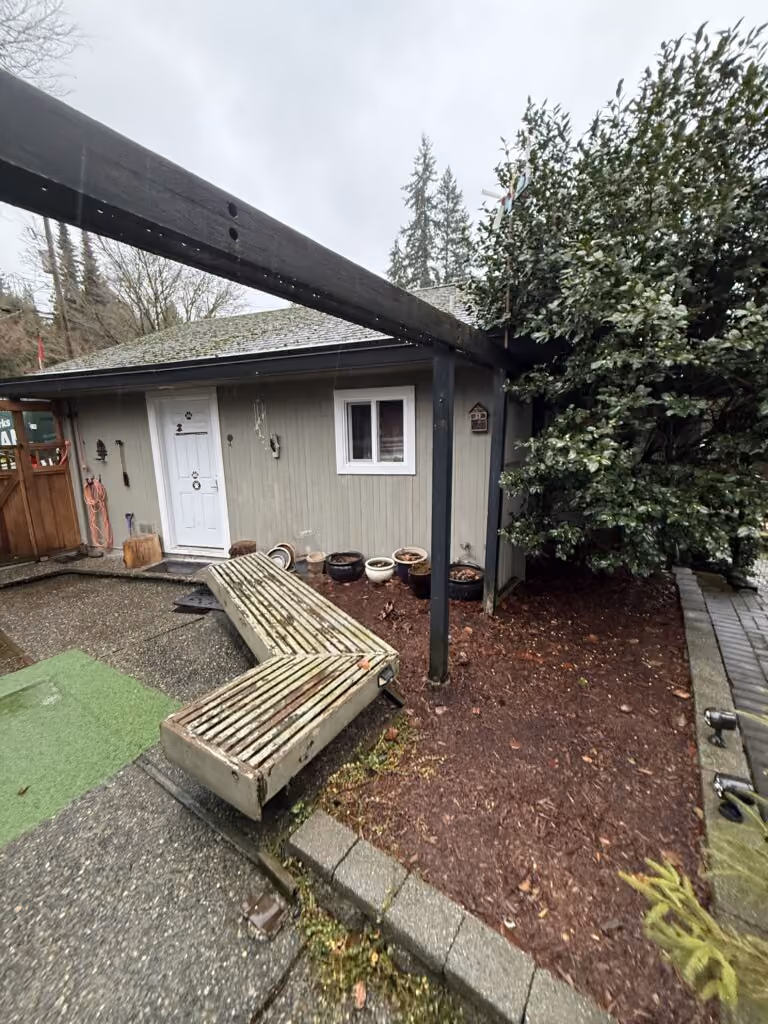

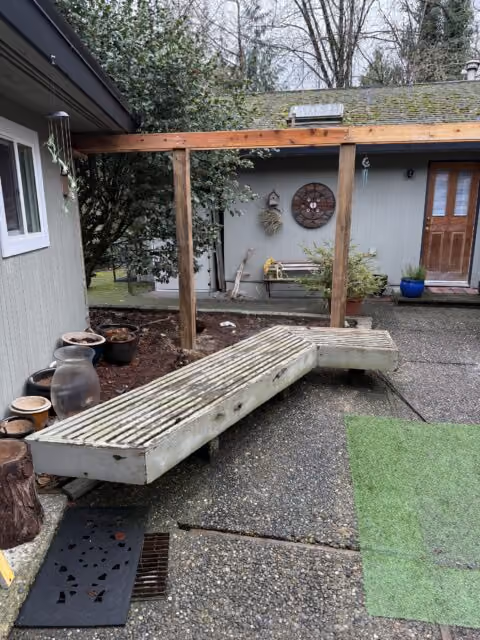

BEFORE

Where We Started

Backyard Trellis and Custom Bench Reconstruction

No items found.
THE APPROACH

What We Did

1

Demolition & Prep

‍Removed the existing bench, trellis beam, and three posts, then cleared and prepped the patio and garden area for the rebuild.

‍

2

Rebuild the Frame

‍Setting three new 6x6 pressure-treated posts in concrete, topped with a full-span cedar 2x6 beam bolted through with carriage bolts for a frame strong enough to hang heavy plants or take exercise-equipment loads.

‍

3

Open the Sightline

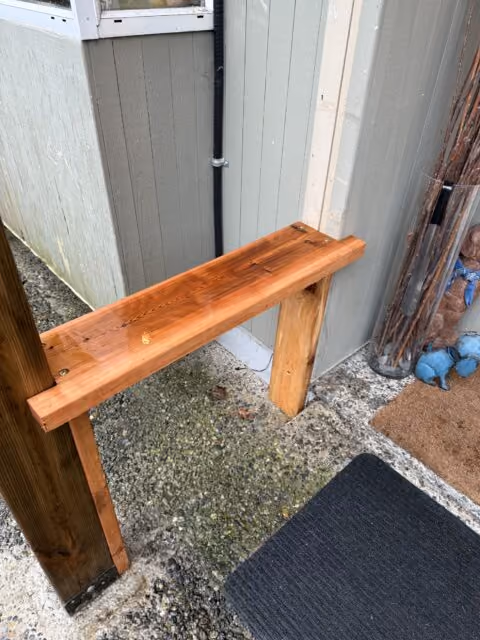

‍ Cutting down and reinstalling the partition wall to the side, reinforced with new cedar 2x4s top and bottom, so the view through the window is restored.

‍

4

Rebuild the Bench

Building a new bench base from pressure-treated 4x4s set in concrete, matching the original size and style, with a cedar 2x8 slatted seat for drainage and the same wrap-around 2x8 border finish.

‍

Materials & Products
- 6x6 pressure-treated posts - 14' cedar 2x6 beam stock - Carriage bolts - Cedar 2x4s - Pressure-treated 4x4s - Cedar 2x8 decking

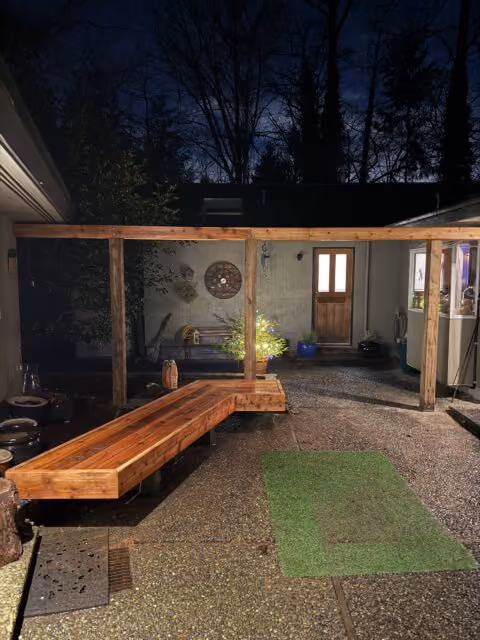

THE RESULT

The Outcome

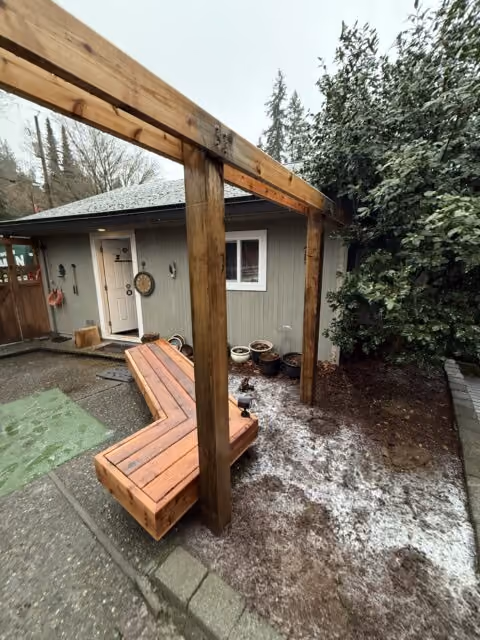

Three new 6x6 posts set in concrete for rock-solid, long-term support.
A full-span cedar beam strong enough for heavy planters or exercise use.
A restored sightline past the partition and through the window.

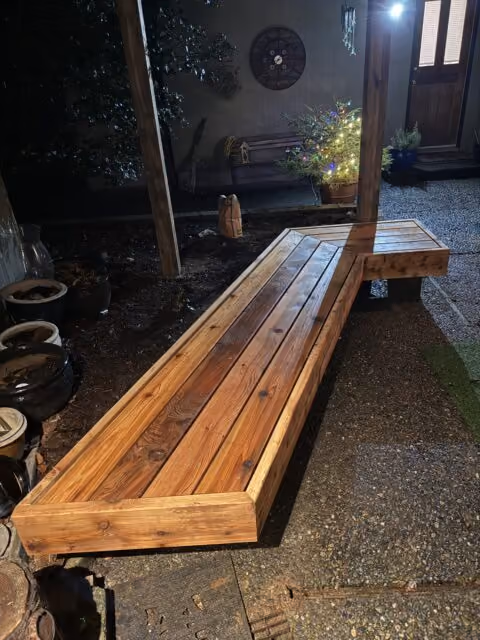

A new cedar bench, matched to the original style, with proper drainage gaps.
